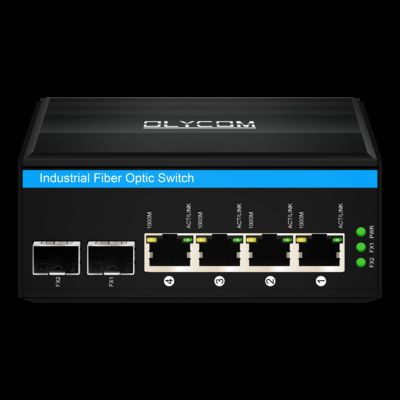

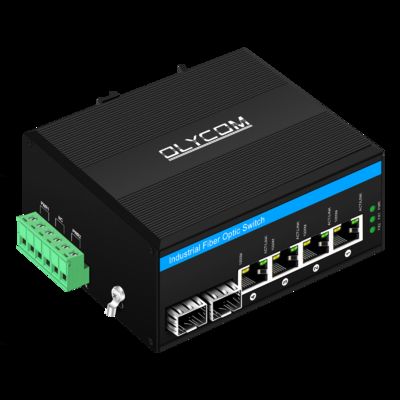

4 Port Solar Poe Switch DC12-48V 120w Industrial Ethernet Switch

4 Port Solar Poe Switch DC12-48V 120w Industrial Ethernet Switch

Key Features of 4 port Solar PoE Switch:

•  Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
•  IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
•  4 x 10/100/1000Mbps Auto-sensing RJ45 ports
•  2x 100/1000Mbps SFP fiber ports

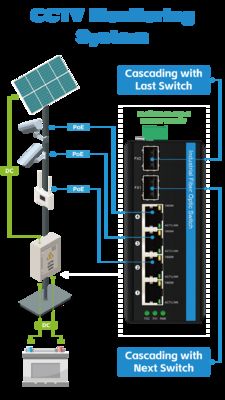

•  Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
•  6 KV Ethernet surge protection, adapt to a harsh outdoor environment
•  Support Auto MDI/MDIX
•  Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
•  IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
•  Max power to15.4W under af standard, 30W under at standard to each PoE port
•  Detect the PoE models of electrical equipments.
•  Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial Ethernet Switch

Packing box of Din rail unmanaged switch:



FAQ:


1. Q: How does this Industrial 6 Ports Gigabit POE Fiber Switch compare to other standard POE switches?

A: This 6 port PoE switch features a built-in voltage booster which enables it to utilize a power input range of 12-48VDC, whereas typical POE switches support 48VDC input only.

2. Q: Does this industrial 6 ports PoE switch support 24VDC power output?

A: No, this product doesn't support passive 24VDC PoE devices, and it supports standard IEEE802.3af/at PoE 48VDC devices only.

3. Q: Is it a managed industrial network switch?

A: It is unmanaged industrial network switch and no need any setting. It is plug and play, easy to use.

4. Q: What's is the PoE Pin Assignment of this Industrial 6 Ports POE  Fiber Switch?

A: It supports both 1/2 (V+),3/6 (V-) and 4/5 (V+),7/8 (V-).

5. Q: Can i use it with one Non-PoE devices?

A: Yes, sure. If one Non-PoE devices is connected with this industrial 6 port PoE switch. The industrial 6 port PoE switch will provide data only, and don't provide power any more.
