Name: 8 Port Managed Industrial PoE Switch Gigabit SFP Fiber 240W Actice PoE DC48V DIN Rail
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: IM-FP288GM
Price: 57.00 USD
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Nome do produto: Switch PoE Gigabit DIN de 8 portas

Fibra: 2*1G SFP Slots

Cobre: 8*10/100/1000Mbps RJ45/PoE

Saída POE: DC48V, PoE ativo

Orçamento PoE: 240W

Chipset: REALTEK

Informação básica

Lugar de origem: Shenzhen, China

Marca: Olycom

Certificação: CE RoHS FCC ISO9001

Número do modelo: IM-FP288GM

Condições de Pagamento e Envio

Detalhes da embalagem: 1pc em uma caixa, peso de efetivação 0.9kg

Tempo de entrega: 4~7 dias de trabalho

Termos de pagamento: T/T, PayPal

Habilidade da fonte: 2000pcs/mês

Galeria

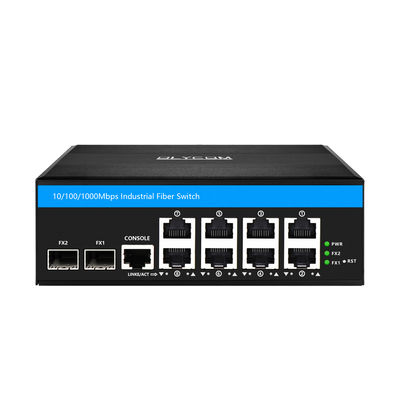

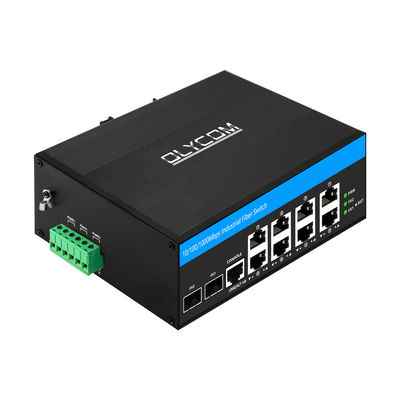

8 Port Managed Industrial PoE Switch Gigabit SFP Fiber 240W Actice PoE DC48V DIN Rail

Descrição de produto

Olycom Gigabit managed PoE fiber switch 8 Port

Key Features of Industrial network switch

Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at/bt power on to 1 ~ 8 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
2 x 1000Mbps SFP fiber port
1 x console port
4 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard,
half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature: -40 ° ~75 ° c
Support bus/star topology, ring structure, support ITU-T G.8032/Y.1344 ERPS
Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods
Support ACL, port-based MAC filtering, MAC address binding, port-based 802.1x authentication, system automatic defense, prevent DDOS and other attacks;
Support VLAN: support port VLAN and 802.1Q Tag
Support QoS 4-level priority, static LACP, support port-based one-way and two-way traffic mirroring
Support IGMP Snooping v1/v2, port bandwidth control, broadcast storm suppression
Support SNTP protocol
Support MIB library opening to meet the requirements of operation and maintenance
Support SNMPv3, IEEE 802.1X, HTTPS and SSH, enhancing network security
Support WEB, CLI, Telnet, Windows utility and SNMP management methods
Reset: Support restart and restore default configuration

Specification of 8 Port Ethernet Switch

Product Name	10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+8TP)
Model No.	IM-FP288GM
Port	2 x 1000Mpbs SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard	IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2c/v3, DHCP ClientTFTP, HTTP, HTTPS, Telnet, Syslog SSH, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB
Managed	☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN ☆ Jumbo frame processing: 9k ☆ Report buffer: 64K ☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression ☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb ☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS ☆ Multicast protocol: IGMPv1/2/3 Snooping ☆ Port management: support port isolation and port aggregation ☆ DHCP management: support DHCP Snooping, option 82 ☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities ☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection
Switching Features	Exchange capacity: 20Gbps Packet forwarding rate: 14.8Mpps MAC address table: 4K Swap delay: <5μs Transmission method: store and forward
Power supply	Input voltage:DC 48-52V; No-load power<5W Reverse connection: support Overload protection: support Redundant protection: support
Environment	Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C; Working humidity:5%～95%, non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Mechanical information	Shell:Corrugated metal shell; Safety class:IP40 Dimension:15811560mm Mounting method:Din-rail mounting
Warranty	Replacement within 1 year; 5 years repairing

Application of Managed PoE Switch

The IM-FP288GM is ideal for industrial Ethernet, transportation, and surveillance networks requiring robust connectivity and intelligent PoE power management.
It ensures stable communication for IP cameras, access points, PLCs, and sensors across factory automation systems, traffic monitoring, power substations, and smart city infrastructure.

With its rugged design, intelligent management, and reliable performance, the IM-FP288GM delivers secure, real-time network connectivity for industrial and outdoor applications.

WEB GUI

8 Port Managed Industrial PoE Switch Gigabit SFP Fiber 240W Actice PoE DC48V DIN Rail 1

8 Port Managed Industrial PoE Switch Gigabit SFP Fiber 240W Actice PoE DC48V DIN Rail 2

Accessory

Industrial Optical Module
OSPL1G05D	1000BASE-SX
OSPL1G06D	1000BASE-SX(1310nm)
OSPL1G20D	1000BASE-LX
OSPL1G40D	1000BASE-EX
OSBL1G20D-35	1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53	1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC48V2.5A	AC220V to DC48V2.5A, -40℃～70℃
IM-DAC220/DC48V5A	AC220V to DC48V5A, -40℃～70℃
IM-DAC220/DC48V10A	AC220V to DC48V10A, -40℃～70℃
