Casa /Produtos/Interruptor controlado industrial do ponto de entrada/Industrial Managed Ethernet Switch 10 Port Gigabit Network DC12V DC24V IP40 Rated

Industrial Managed Ethernet Switch 10 Port Gigabit Network DC12V DC24V IP40 Rated

1 unidade
MOQ
Negociável
preço
Industrial Managed Ethernet Switch 10 Port Gigabit Network DC12V DC24V IP40 Rated
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome do produto: Interruptor de rede gerenciado na porta 8 L2
Fibra: 2*1G SFP Slots
Cobre: 8*10/100/1000Mbps RJ45
Recurso: L2 Gestão, não PoE
Chipset: REALTEK
OEM: Apoiar
Informação básica
Lugar de origem: Shenzhen, China
Marca: Olycom
Certificação: CE RoHS FCC ISO9001
Número do modelo: IM-FS280GM
Condições de Pagamento e Envio
Detalhes da embalagem: 1pc em uma caixa, peso de efetivação 0.9kg
Tempo de entrega: 4 ~ 8 dias úteis
Termos de pagamento: T/T, PayPal
Habilidade da fonte: 3000pcs/mês
Descrição de produto

10-Port Managed Industrial Gigabit Fiber Switch



Product Overview

The Olycom IM-FS280GM is a 10-port managed industrial Gigabit fiber switch built for mission-critical applications in harsh environments enjoying below features
  • Port Configuration – 8 × 10/100/1000M RJ45 ports + 2 × Gigabit SFP fiber ports + 1 × console port.
  • Rugged Industrial Design – IP40 metal enclosure, DIN-rail mounting, -40°C to +85°C operating range.
  • High Reliability – 20Gbps switching fabric, 14.8Mpps forwarding rate, 4K MAC table, <5μs latency.
  • Redundant Power System – Dual DC 9–52V inputs with reverse polarity and overload protection.
  • Ring Network Resilience – Supports ITU-T G.8032/Y.1344 ERPS for sub-50ms recovery in ring topologies.
  • Comprehensive Layer 2 Features – VLAN (802.1Q/Port-based), QoS (802.1p, 4-level priority), IGMP Snooping v1/v2/v3.
  • Enhanced Security – 802.1X authentication, DHCP snooping, MAC filtering, ACL, IP-MAC binding, and DoS defense.
  • Advanced Management – SNMPv1/v2/v3, Web GUI, CLI, Telnet, HTTPS, SSH, and Windows utility.
  • Flow Control & Monitoring – IEEE802.3x full-duplex flow control, bandwidth management, storm suppression.
  • Industrial Compliance – Meets EMC EN61000-4-2/3/4/5, FCC Part 15 Class A, and EN55022 Class A standards.



Technical Data



Product Name 10/100/1000Mbps Managed Industrial Fiber Switch (2F+8TP)
Model No. IM-FS280GM
Port

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km

MM:1310nm, 2Km

8 x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1Q VLAN Tagging, IEEE 802.1p CoS, IEEE 802.1X Authentication, IEEE 802.3ad Link Aggregation Protocol: IGMPv1/v2, SNMPv1/v2c/v3, DHCP ClientTFTP, HTTP, HTTPS, Telnet, Syslog SSH, SNMP Inform, DDM, Ping/tracert detection, MIB library: MIB-II, Ethernet-Like MIB
Managed

☆Support VLAN: 802.1Q VLAN (4K), Port-based VLAN

☆ Jumbo frame processing: 9k

☆ Report buffer: 64K

☆ Broadcast storm suppression: support broadcast, multicast, unknown unicast suppression

☆ Flow control: Adopt IEEE802.3x negotiation flow control, CAR function, speed limit step size is 1Kb

☆ Ring network function: support ITU-T G.8032 /Y.1344 ERPS

☆ Multicast protocol: IGMPv1/2/3 Snooping

☆ Port management: support port isolation and port aggregation

☆ DHCP management: support DHCP Snooping, option 82

☆ QoS mechanism: 802.1p; support port default priority marking, each port has at least 4 queues with different priorities

☆ Security: login access authentication, login password modification, MAC address filtering, support dynamic or static MAC address learning / support ARP learning function off and on, ARP message speed limit / support IP+MAC+ port manual and automatic scanning binding Set IEEE 802.1x (Port based, MAC based), can transparently transmit 802.1x data packets/port loop detection
Switching Features

Exchange capacity: 20Gbps Packet forwarding rate: 14.8Mpps

MAC address table: 4K Swap delay: <5μs

Transmission method: store and forward
Power supply

Input voltage:DC 9-52V; No-load power<5W

Reverse connection: support

Overload protection: support

Redundant protection: support
Environment

Working Temp:-40°～ 75°C

Storage Temp:-40°～ 85°C;

Working humidity:5%～95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40

Dimension:158*115*60mm

Mounting method:Din-rail mounting
Warranty Replacement within 1 year; 3 years repairing



Software Features

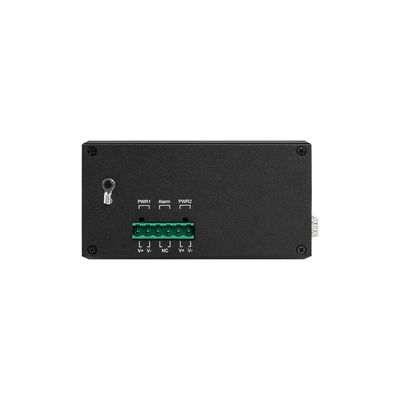

Industrial Managed Ethernet Switch 10 Port Gigabit Network DC12V DC24V IP40 Rated 0



  • Support bus/star topology, ring structure, support ITU-T G.8032/Y.1344 ERPS
  • Support SNMPv1, v2, v3, Web management, support user login password protection and other device configuration methods
  • Support ACL, port-based MAC filtering, MAC address binding, port-based 802.1x authentication, system automatic defense, prevent DDOS and other attacks;
  • Support VLAN: support port VLAN and 802.1Q Tag
  • Support QoS 4-level priority, static LACP, support port-based one-way and two-way traffic mirroring
  • Support IGMP Snooping v1/v2, port bandwidth control, broadcast storm suppression
  • Support SNTP protocol
  • Support MIB library opening to meet the requirements of operation and maintenance
  • Support SNMPv3, IEEE 802.1X, HTTPS and SSH, enhancing network security
  • Support WEB, CLI, Telnet, Windows utility and SNMP management methods
  • Reset: Support restart and restore default configuration



Accessory



Industrial Optical Module
OSPL1G05D 1000BASE-SX
OSPL1G06D 1000BASE-SX(1310nm)
OSPL1G20D 1000BASE-LX
OSPL1G40D 1000BASE-EX
OSBL1G20D-35 1000BASE-BX-U(TX 1310 RX1550)
OSBL1G20D-53 1000BASE-BX-D(TX 1550 RX1310)
Industrial DIN Power Supply
IM-DAC220/DC12V1.67A AC220V to DC12V1.67A, -30℃～70℃
IM-DAC220/DC24V1A AC220V to DC24V1A, -30℃～70℃



Applications



  • Industrial Automation & SCADA Systems – Reliable backbone for PLCs, sensors, and industrial control units.
  • Power & Energy Networks – Secure, real-time communication across substations and power distribution systems.
  • Intelligent Transportation Systems (ITS) – Stable data transmission for traffic control and monitoring infrastructure.
  • Manufacturing & Factory Networks – Robust connectivity supporting machine vision, robotics, and process control.
  • Security & Surveillance – Long-distance fiber uplinks for IP cameras and centralized monitoring systems.
  • Smart City Infrastructure – High-availability backbone for IoT devices, public safety, and environmental monitoring.

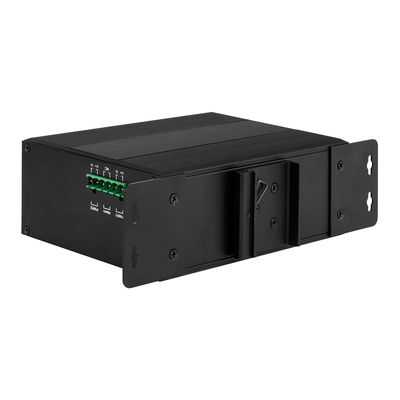

Industrial Managed Ethernet Switch 10 Port Gigabit Network DC12V DC24V IP40 Rated 1
