Name: 16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless
Brand: Shenzhen Olycom Technology Co., Ltd.
SKU: OM21816-PSE-GE
Price: 57.00 USD
Availability: InStock

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless

1 unidade

MOQ

Negociável

preço

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Nome do produto: Switch comercial de fibra PoE de 16 portas

recurso: PoE, não gerido

Orçamento PoE: 15,4 W/30 W, orçamento de 300 W

Poder: Entrada AC ((100-240V)

Personalização: Sim

Chip: REALTEK

uplink: 2*1G SFP Slots

Linha descendente: 16*10/100/1000Mbps RJ45/PoE

Informação básica

Lugar de origem: Shenzhen, China

Marca: Olycom

Certificação: CE RoHS FCC ISO9001

Número do modelo: OM21816-PSE-GE

Condições de Pagamento e Envio

Detalhes da embalagem: 1 peça em uma caixa, 3,3 kg/peça de peso bruto

Tempo de entrega: 4 ~ 8 dias úteis

Termos de pagamento: T/T, Paypal

Habilidade da fonte: 1500 peças/mês

Galeria

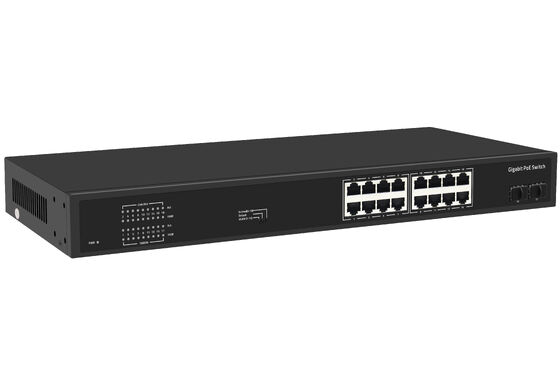

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless

Descrição de produto

Olycom 16-Port Gigabit PoE Switch: Built for Stable, Scalable Networks

Designed for modern network deployments, this 18-port Gigabit PoE switch delivers a reliable balance of performance, flexibility, and simplicity.

Equipped with 16×10/100/1000Mbps PoE ports and 2×Gigabit SFP uplinks, it supports seamless connectivity across a wide range of network environments—from enterprise offices to industrial facilities.

Each PoE port complies with IEEE 802.3af/at standards, enabling intelligent power delivery up to 30W per port, with a total PoE budget of 300W. The switch automatically detects connected devices, supplying power only when required—ensuring efficiency and safety.

With a 36Gbps switching capacity and 26.784Mpps forwarding rate, data flows smoothly even under demanding workloads.

Built for Real-World Deployment: From SMEs and schools to hotels and industrial sites, this switch provides a dependable foundation for structured networks.

Key Highlights

16 Gigabit PoE ports + 2 Gigabit SFP uplinks

IEEE 802.3af/at compliant (up to 30W per port)

Intelligent PoE detection and protection

3 working modes: Default / VLAN / Extend

Up to 250m transmission distance in Extend mode (10Mbps)

8K MAC address table for stable device management

Plug-and-play with minimal configuration

Specification

Product Name	18 Port 10/100/1000Mbps Ethernet PoE Switch
Port	16 Port 10/100/1000M PoE + 2 Gigabit SFP
Switching Capacity	36Gbps
Throughput	26.784Mpps
Packet Buffer	4M
MAC Address	8K
Jumbo Frame	9.6Kbytes
Transfer Mode	Store and forward
MTBF	100000 hours
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af(15.4W) IEEE802.3at(30W)
PoE Wiring	1/2(+), 3/6(-)
PoE Budget	300W
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge)
Network Medium	10Base-T: Cat3,4,5 or above UTP(≤100m) 100Base-TX: Cat5 or above UTP(≤100m) 1000Base-TX: Cat5 or above UTP(≤100m)
Optical Media	Multi mode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Certification	CE/FCC/RoHS
Working Environment	Working Temperature: -10℃~50℃ Storage Temperature: -40℃~70℃ Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~95%, non-condensing
Power	Power Input Voltage: AC100-240V Internal AC-DC Converter: 52V5.76A
LED Indicators	PWR(Power indicator) On: power on Off: no power 1-18 ACT(Link&Data) On: Connected Off: Disconnected Flashing: Data Transmitting 1-18 1000M(Link) On: 1000M Off: 10/100M
DIP Switch	VLAN: Port Isolation, 1-16 PoE ports are isolated each other and can only communicate with uplink port 17/18 Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend: Link Extension Mode, 9-16 ports PoE and data transmission distance extended to 250 meters, the transmission rate becomes 10M/s

Application

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless 0

Packing Information

1pc switch(neutral device)
1pc power cable(standards vary across countries)
1pc user manual(including QIG information)
1pair mounting brackets(rack mountable)

Shipping box information(Below information is approximately accurate)

Product size: 440*204*44.5mm
Inner box size: 500*290*85mm
Product weight: 2.73Kg
Packing weight: 3.3Kg

Master box size: 520*445*310mm
Packing quantity: 5Pcs
Packing weight: 17.5Kg

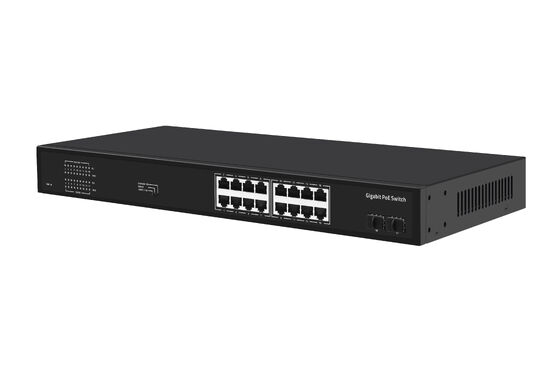

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless 1

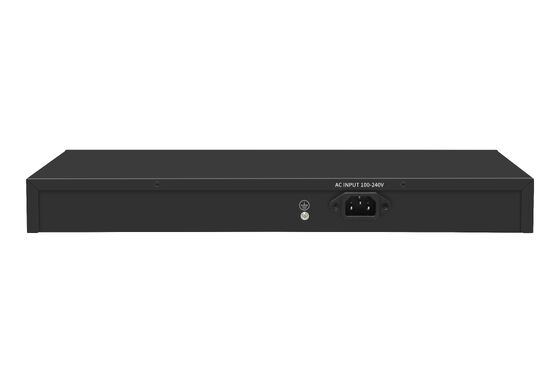

16 Port Gigabit PoE Switch 1G Fiber Uplinks Single AC Input 300W Budget CE Fanless 2
