Olycom 48 Port 10G Based Managed PoE Network Switch
Introduction
In today’s rapidly evolving digital landscape, network infrastructure must deliver not only high-speed connectivity but also stability, scalability, and intelligent management.

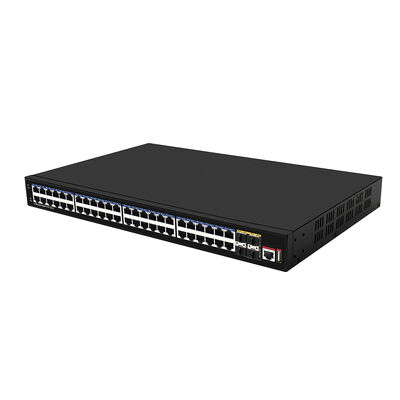

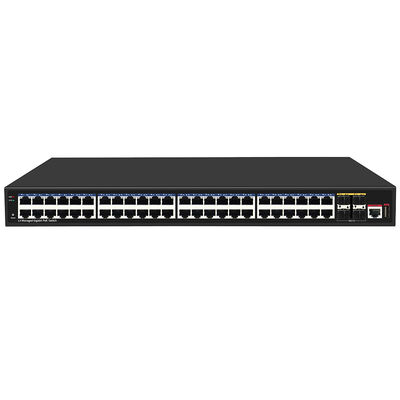

The OM4X4848-PSE-GW 52-Port L3 Managed PoE Switch is designed to meet these demands by integrating advanced Layer 3 routing capabilities with high-density Gigabit access and 10G uplink performance.
Equipped with 48 Gigabit PoE ports and 4 high-speed 10G SFP+ uplinks, this switch provides a robust backbone for modern enterprise networks, ensuring seamless data transmission across large-scale deployments.
Built with reliability and security at its core, the switch incorporates comprehensive protection mechanisms such as DoS attack prevention, CPU protection policies, and intelligent traffic management.
These features work together to enhance network resilience, minimize downtime, and maintain optimal performance under heavy workloads. Additionally, its flexible management options—including WEB, CLI, SNMP, and SSH—enable network administrators to efficiently monitor, configure, and optimize operations in real time.
Whether deployed at the core, distribution, or access layer, this switch delivers a powerful and scalable solution for complex networking environments.
Specification
|
I/O Interface
|
|
Power Input
|
AC100-240V/50-60Hz
|
|
Ethernet
|
48* 10/100/1000Mbps POE Ports (Ports 1-4 support BT Power Supply)
4* 10G SFP+ Port
1* RJ45 Console Port
1* USB serial Port
|
|
Performance
|
|
Bandwidth
|
176Gbps
|
|
Packet Forwarding Rate
|
131Mpps
|
|
DDR SDRAM
|
512MByte
|
|
Flash Memory
|
32MByte
|
|
Buffer Memory
|
16Mbit
|
|
MAC Address
|
32K
|
|
Jumbo Frame
|
10Kbytes
|
|
VLANs
|
VLAN range 1-4094, with a maximum active VLAN of 4K
|
|
Standard
|
|
Network Protocol
|
IEEE802.3 Ethernet MAC Protocol
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000BASE-X Gigabit Ethernet (optical fiber)
IEEE 802.3ae 10G Ethernet
IEEE802.3x Flow Control
IEEE 802.3az Energy-efficient Ethernet
IEEE 802.3ad Standard method for performing link aggregation
IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)
IEEE 802.1D Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1Q (VLAN Bridge Operation)
IEEE 802.1p (VLAN Label)
IEEE 802.1X Client/Server Access Control and Authentication Protocol
|
|
POE Standard
|
IEEE802.3af (15.4W).
IEEE802.3at (30W),
IEEE802.3bt (90W)
|
|
Industry Standard
|
EMS: EN61000-4-2 (ESD),
EN61000-4-5 (Surge
|
|
Network Medium
|
10Base-T : Cat3, 4, 5 or above UTP(≤100m)
100Base-TX : Cat5 or above UTP(≤100m)
1000Base-TX : Cat5 or above UTP(≤100m)
|
|
Certification
|
|
Safety Certificate
|
CE, FCC, RoHS
|
|
Environment Standard
|
|
Working Environment
|
Working Temperature:-10~50°C
Storage Temperature:-40~70°C
Working Humidity :10%~90%,non-condensing
Storage Temperature:5%~95%,non-condensing
|
|
Function Indicator
|
|
Indicator
|
PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)
|
|
PWR
|
On: Powered On
Off: Powered Off
|
|
SYS
|
On: System On
Flashing: System Off or Failed
|
|
Link/ACT
|
On: Link Connecting
Flashing: Data Transmitting
Off: Link Off
|
|
Physical Specification
|
|
Structure Size
|
Product Dimensions: 440*360*44.5mm
Package Dimensions: 580*440*120mm
Product N.W: 5.49KG
Product G.W: 6.85KG
|
|
Packing Info
|
Carton Dimensions: 600*460*278mm
Packing Quantity: 2Pieces
Packing weight:14.7 KG
|
|
Power Voltage
|
Working Voltage: AC100-240V 50/60Hz
Power Supply: 52V 7.69A
|
|
Power Consumption
|
POE Total Power:maximum 400W
Mainboard power consumption:57.2W
|
|
Package List
|
Switch: 1 set; instruction manual: 1 set; certificate of quality: 1 set; power cord: 1 set; serial cable: 1 set; mounting ear: 1 pair
|
Software Function
|
L3 Function
|
|
IPv4
|
IPv4 VLAN Interface
|
|
IPv4 Static Routes
|
|
ARP
|
|
IPv6
|
IPv6 VLAN Interface
|
|
IPv6 Static Routes
|
|
IPv6 ND
|
|
RIP
|
V1/V2
|
|
OSPF
|
Router-ID
|
|
Authentication
|
|
v2
|
|
L2 Function
|
|
Port
|
Port Switch
|
|
Port Description
|
|
Port Speed
|
|
Port Duplex
|
|
Port Flow Control
|
|
Jumbo, Up to 10K
|
|
Support 10G/2.5G (2023.3.2)
|
|
Fiber Module(DDM)
|
|
Link Aggregation
|
Supports load balance policy;
Base on MAC and IP-MAC
|
|
Static and Dynamic Group
|
|
Supports LACP
|
|
Up to 8 groups
|
|
Storm Control
|
Boardcast
|
|
Unknown Multicast
|
|
Unknown Unicast
|
|
Port Mirroring
|
One to one monitor
|
|
Many to one monitor
|
|
Ingress/Egress/Both
|
|
Up to 4 session groups
|
|
Port Security
|
MAC Address Constraints
|
|
Port Security MAC Address
|
|
Protect/Restrict/Shutdown
|
|
Port Isolation
|
|
|
Port Rate-limit
|
|
|
Loopback Detection
|
|
|
VLAN
|
Access/Trunk/Hybrid
|
|
VLAN Tunnel (Q-in-Q Tunnel)
|
|
Congurable VID from 1 - 4094;
Max. 4K static VLAN groups
|
|
Voice VLAN
|
|
MAC VLAN
|
|
Surveillance VLAN
|
|
Protocol VLAN
|
|
GVRP
|
|
MAC Address
|
Dynamic Address
|
|
Static Address
|
|
Filtering Address
|
|
Spnning Tree Protocol
|
STP/RSTP/MSTP
|
|
BPDU Filter
|
|
BPDU Guard
|
|
Edge Port
|
|
ERPS
|
Only SFP port
|
|
ALL Port
|
|
LLDP
|
LLDP
|
|
LLDP MED
|
|
Multicast
|
IGMP Snnoping
|
|
IGMP V1/V2/V3
|
|
Router Port
|
|
Static IGMP group address
|
|
IGMP groups filtering
|
|
Querier
|
|
MLD Snooping
|
|
MVR
|
|
QoS
|
Traffic classification based, Strict priority and WRR
|
|
Port Priority
|
|
802.1P Priority
|
|
IP TOS Priority
|
|
IP DSCP Priority
|
|
Supports up to 8 queues per port
|
|
Priority Remarking
|
|
PoE
|
|
PoE Configuration
|
PoE Temperature
|
|
PoE Type/Level/Power/Voltage/Current
|
|
PoE Switch
|
|
PoE Watchdog
|
|
PoE power AF/AT adaptation
|
|
IEEE 802.3bt,compatible with IEEE 802.3af/802.3at PoE
|
|
PoE Schedule
|
|
|
PoE Port Timer Reboot
|
|
|
Services
|
|
DHCP
|
DHCP Server
|
|
IP Pool
|
|
Static Binding
|
|
DHCP Relay
|
|
Option 43
|
|
Access Protocol
|
HTTP
|
|
HTTPS
|
|
Telnet
|
|
SSHv2
|
|
Manager ACL
|
|
Session Timeout
|
|
Password Retry Count
|
|
Silent Time
|
|
Security
|
|
AAA
|
RADIUS
|
|
TACACS+
|
|
802.1X
|
|
Base on port/MAC/local/WEB
|
|
DHCP Snooping
|
Global/VLAN
|
|
Option 82
|
|
Circuit ID
|
|
IP Source Guard
|
|
|
Dynamic ARP Inspection
|
|
|
DoS
|
|
|
ACL
|
MAC ACL
|
|
IPv4 ACL
|
|
IPv6 ACL
|
|
Diagnostics
|
|
Syslog
|
Logging Message
|
|
Remote Server
|
|
Ping
|
|
|
Traceroute
|
|
|
Copper Test
|
|
|
UDLD
|
|
|
Management
|
|
Manager Access
|
Console
|
|
HTTP/HTTPS
|
|
Telnet
|
|
SSH
|
|
SNMP
|
|
Manager IP
|
Static Address
|
|
DHCP Client
|
|
Supports IPv4 and IPv6 address
|
|
Manager VLAN
|
|
DNS
|
|
Time Synchronization
|
SNTP
|
|
Manual Time
|
|
SNMP
|
V1/V2C/V3
|
|
Community
|
|
V3 User
|
|
Group
|
|
Trap Host
|
|
SNMP MIB
|
RFC 1213 MIB-II
|
|
RFC 1493 Bridge MIB
|
|
RFC 1643 Ethernet MIB
|
|
RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)
|
|
RFC 2863 Interface MIB
|
|
LLDP
|
|
Private MIB
|
|
RMON
|
Statistics
|
|
History
|
|
Event
|
|
Alarm
|
|
User
|
|
|
Firmware
|
Double Image; Swap between Active and Alternate firmware image.
|
|
Firmware Upgarde
|
|
Configuration
|
Upload and download
|
|
Upload and download via USB interface
|
|
Save
|
|
|
Restart
|
|
|
Factory Defaults
|
|
|
Standards Compliance
|
|
IEEE 802.3x flow control and back pressure
|
|
IEEE 802.3ad port trunk with LACP
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN tagging
|
|
IEEE 802.1x Port Authentication Network Control
|
|
IEEE 802.1ab LLDP
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3bt PoE++ Power over Ethernet Plus Plus
|
|
RFC 768 UDP
|
|
RFC 793 TFTP
|
|
RFC 791 IP
|
|
RFC 792 ICMP
|
|
RFC 2068 HTTP
|
|
RFC 1112 IGMP v1
|
|
RFC 2236 IGMP v2
|
|
RFC 3376 IGMP v3
|
|
RFC 2710 MLD v1
|
|
FRC 3810 MLD v2
|
|
RFC 2328 OSPF v2
|
Features
The OM4X4848-PSE-GW switch stands out with its extensive set of advanced features designed to optimize performance, security, and manageability.
It fully supports a wide range of IEEE standards, ensuring compatibility and interoperability across diverse network infrastructures. Its Layer 3 capabilities include IPv4/IPv6 routing, RIP, and OSPF protocols, enabling efficient traffic routing and network segmentation for large-scale deployments.
From a switching perspective, the device offers comprehensive VLAN support, including MAC VLAN, protocol VLAN, and private VLAN, allowing for flexible network design and enhanced traffic isolation.
Advanced QoS (Quality of Service) mechanisms ensure priority handling of critical data such as voice and video, while link aggregation and load balancing improve bandwidth utilization and redundancy.
Security is another key strength, with features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, and ACL controls providing multi-layer protection against network threats.
The inclusion of PoE standards up to IEEE 802.3bt (90W) enables the switch to power high-demand devices such as IP cameras, wireless access points, and VoIP phones directly through Ethernet cables.
Additionally, intelligent PoE management—such as watchdog, scheduling, and power monitoring—ensures efficient energy usage and device stability.
Application
This high-performance switch is ideally suited for a wide range of networking scenarios that demand reliability, scalability, and intelligent control.
In metropolitan optical broadband networks, it serves as a critical component for telecom operators, cable providers, and system integrators, enabling high-speed data aggregation and distribution.
Its strong routing and security capabilities make it equally effective in enterprise private networks across industries such as finance, government, energy, transportation, and education.
For multimedia and communication environments, the switch supports integrated transmission of voice, video, and data, making it an excellent choice for applications like remote education, video conferencing, and IP telephony.
Its high bandwidth and QoS capabilities ensure smooth, uninterrupted streaming and communication experiences.
In surveillance and real-time monitoring systems, the switch excels by providing stable PoE power and reliable data transmission for IP cameras and control systems.
It enables simultaneous delivery of control signals, video feeds, and data streams, ensuring accurate and timely monitoring.
Overall, the OM4X4848-PSE-GW is a versatile networking solution that adapts to diverse application requirements while maintaining high performance and operational efficiency.
