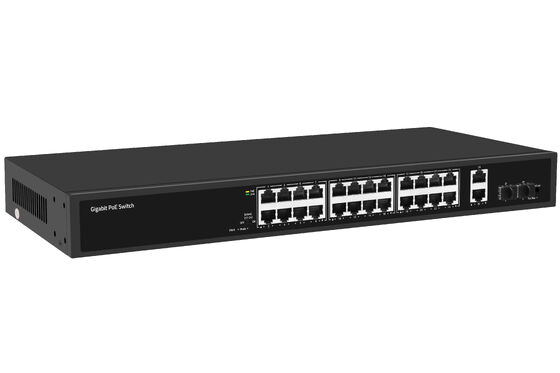

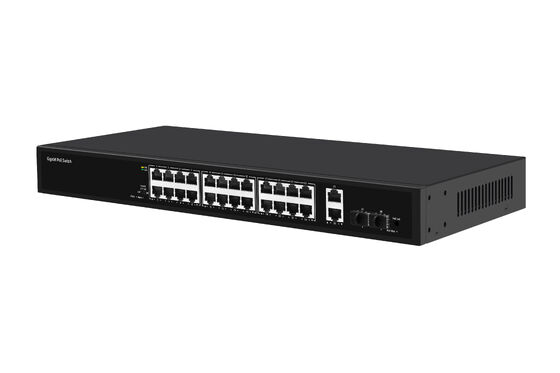

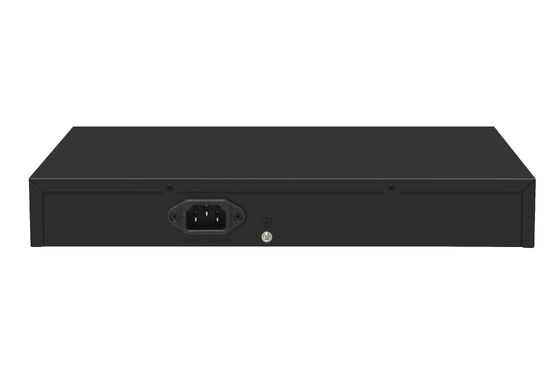

Olycom 24 Port Gigabit CCTV PoE Switch
Key Features
- 24*10/100/1000M PoE Ports + 2*Gigabit Ethernet Uplink + 2*1000M SFP Port
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3af/at standards
- Ethernet port supports 10/100/1000M adaptive and PoE functions
- PoE priority is supported, from port 1 to port 24, which is enabled by default
- The AI mode is automatically enabled 10M speed for Ports 17~24 in Extend mode
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
- Support port auto flip (Auto MDI/MDIX)
- Automatically supplied to adaptive devices
- Panel indicator monitoring status and help failure analysis
- Support VLAN mode, OFF mode and Extend mode
- Support PoE Watchdog
- Support port lightning surge: common mode 4KV, differential mode 2KV; Electrostatic ESD: air 8KV, contact 6KV
- 1U Rack installation
Specification
|
Product Name
|
28 Port 10/100/1000Mbps Rack Type Ethernet PoE Switch
|
|
Port
|
24 Port 10/100/1000M PoE + 2 Gigabit Ethernet Uplink + 2 Gigabit SFP
|
|
Switching Capacity
|
56Gbps
|
|
Throughput
|
41.644Mpps
|
|
Packet Buffer
|
6M
|
|
MAC Address
|
8K
|
|
Jumbo Frame
|
9216Kbytes
|
|
Transfer Mode
|
Store and forward
|
|
MTBF
|
100000 hours
|
|
Network protocol
|
IEEE 802.3: Ethernet Media Access Control (MAC) protocol
IEEE 802.3i:10BASE-T Ethernet
IEEE 802.3u:100BASE-TX Fast Ethernet
IEEE 802.3ab:1000BASE-T Gigabit Ethernet
IEEE 802.3z:1000BASE-X Gigabit Ethernet (Optical Fiber)
IEEE 802.3x: Flow Control
|
|
PoE Protocol
|
IEEE802.3af(15.4W)
IEEE802.3at(30W)
|
|
PoE Wiring
|
1/2(+), 3/6(-)
|
|
PoE Budget
|
400W
|
|
Industry Standard
|
EMI: FCC Part 15 CISPR (EN55032) class A
EMS: EN61000-4-2 (ESD)
EN61000-4-5 (Surge)
|
|
Network Medium
|
10Base-T: Cat3,4,5 or above UTP(≤100m)
100Base-TX: Cat5 or above UTP(≤100m)
1000Base-TX: Cat5 or above UTP(≤100m)
|
|
Optical Media
|
Multi mode fiber : 50/125, 62.5/125, 100/140μm
Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
|
|
Certification
|
CE/FCC/RoHS
|
|
Working Environment
|
Working Temperature: -10℃~50℃
Storage Temperature: -40℃~70℃
Working Humidity: 10%~90%, non-condensing
Storage Temperature: 5%~95%, non-condensing
|
|
Power
|
Power Input Voltage: AC100-240V
Internal AC-DC Converter: 52V7.69A
|
|
LED Indicators
|
PWR(Power indicator)
On: power on
Off: no power
1-28 ACT(Link&Data)
On: Connected
Off: Disconnected
Flashing: Data Transmitting
1-24 1000M(Yellow Light)
On: PoE power supply is normal
Off: PoE not powered
PoE Max PoE power light
Off: PoE power usage is less than 90%
Flashing: PoE power usage of 90%≤ P≤ 95%
On: PoE power is used at 95%<P<100%
Mode DIP Switch light
On: Extend on
Off: Extend off
PoE Led Key
Dual color light selection
Default green (link data), Switch yellow light (PoE)
|
|
Extend DIP Switch
|
OFF: Normal mode, all interfaces can communicate with each other
The transmission distance is less than 100 meters, the transmission rate is 10/100/1000M adaptive; The port AI mode is disabled
ON: Link extension mode, 17-24 ports force 10M, link 250M (enable PoE watchdog), The port AI mode is enabled
|
Introduction
It adopts high-quality and high-speed network intelligent and PoE chip
This PoE switch has 24 port 10/100/1000M PoE + 2 Gigabit Ethernet Uplink + 2 Gigabit SFP enjoying
- seamless connection for 10/100/1000M Ethernet
- three working modes
- one-key smart simple switching working mode
- easy to manage and maintain
- 802.3af and 802.3at standard for each PoE port
- intelligent detection of powered devices
power the devices that comply with the IEEE802.3af or IEEE802.3at standards
transmit only data to non-PoE devices
With simple and convenient installation, maintenance methods and rich business features, it helps users build a safe and reliable high-performance network
It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband
It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools
Dimension
Packing Information
- 1pc switch(neutral device)
- 1pc power cable(standards vary across countries)
- 1pc user manual(including QIG information)
- 1pair mounting brackets(rack mountable)
Shipping box information(Below information is approximately accurate)
Product size: 440*205*44mm
Inner box size: 500*290*85mm
Product weight: 2.86Kg
Packing weight: 3.39Kg
Master box size: 520*445*310mm
Packing quantity: 5Pcs
Packing weight: 17.95Kg
Remark
Accessories(optical module, patchcord etc.)are NOT included in the packing box
Please prepare it by yourself or purchase a whole set from us
Power adapter is included in BOTH the packing box AND unit pricing
QC Framework
1. Standards: Comply with ISO9001, CE, FCC, RoHS, IEEE, ITU-T; align with customer specs and performance benchmarks.
2. Process: IQC → production control → functional testing → environmental testing → burn-in → final inspection.
3. Key Tests: Throughput, VLAN/QoS, PoE, wavelength accuracy, OSNR, power stability, durability (-40~75°C).
4. Tools: OSA, traffic generator, protocol analyzer, environmental chambers.
5. Management: Full traceability, QC records, continuous improvement via RCA and feedback.
